Design & Features

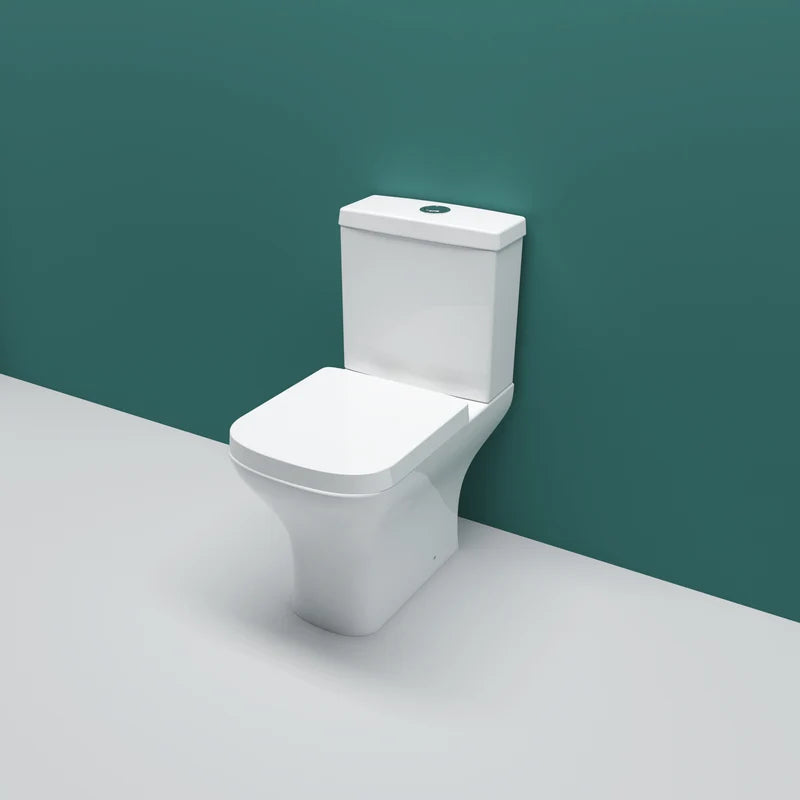

The Oakham square short projection close coupled toilet provides a clean contemporary appearance while using bathroom floor space carefully. Its squared pan, slim cistern and compact 605mm projection make it particularly suitable for modern bathrooms, en-suites and cloakrooms.
Manufactured from ceramic with a high gloss white glaze, the toilet has a smooth surface that is straightforward to wipe clean. Its 400mm pan height provides familiar proportions for comfortable everyday use.
The cistern includes a 4/6 litre dual flush mechanism, allowing the user to select a reduced or full flush. A soft close toilet seat is also included to provide quieter, more controlled closing.

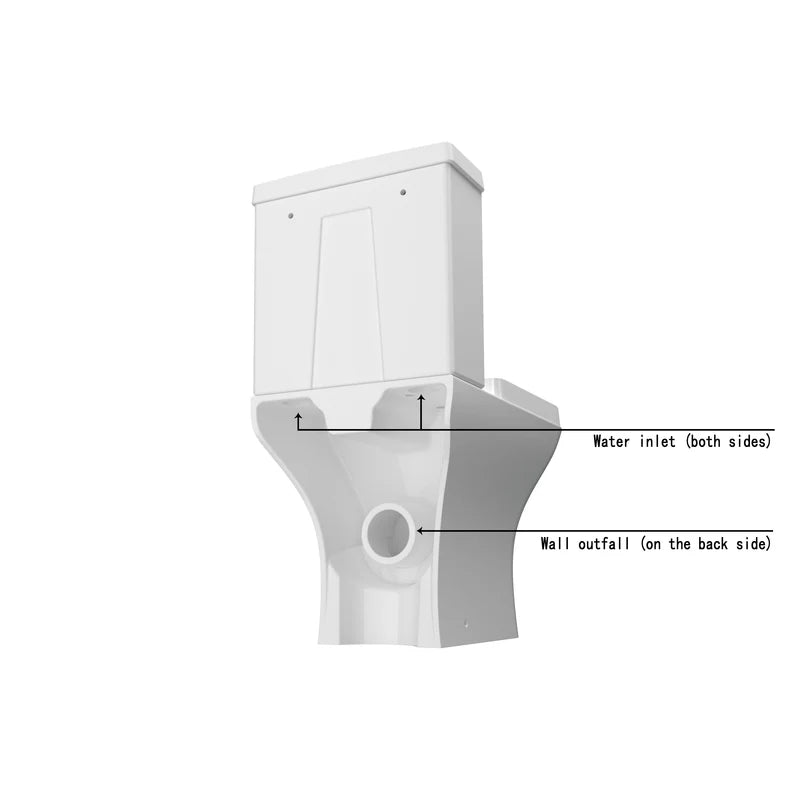

Water can be connected from either side of the cistern, giving the installer additional flexibility around the existing pipework. The complete set includes the toilet pan, cistern, soft close seat and standard fitting kit.
What’s Included
Oakham Square Close Coupled Toilet Pan
Dual Flush Cistern
Soft Close Toilet Seat
Standard Fitting Kit
Installation Information

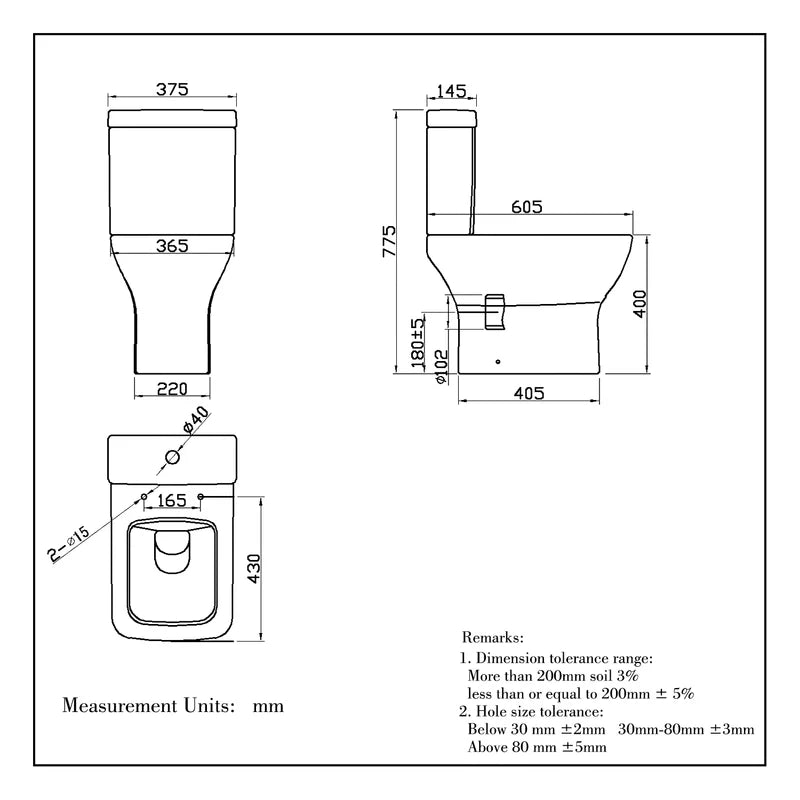

This toilet uses a P trap with a horizontal wall outlet. Check the 605mm projection, waste position and available installation space before completing any plumbing, flooring or wall finishes.
Installation should be completed by a suitably qualified tradesperson. Ceramic dimensions can vary slightly because of normal manufacturing and firing tolerances.
