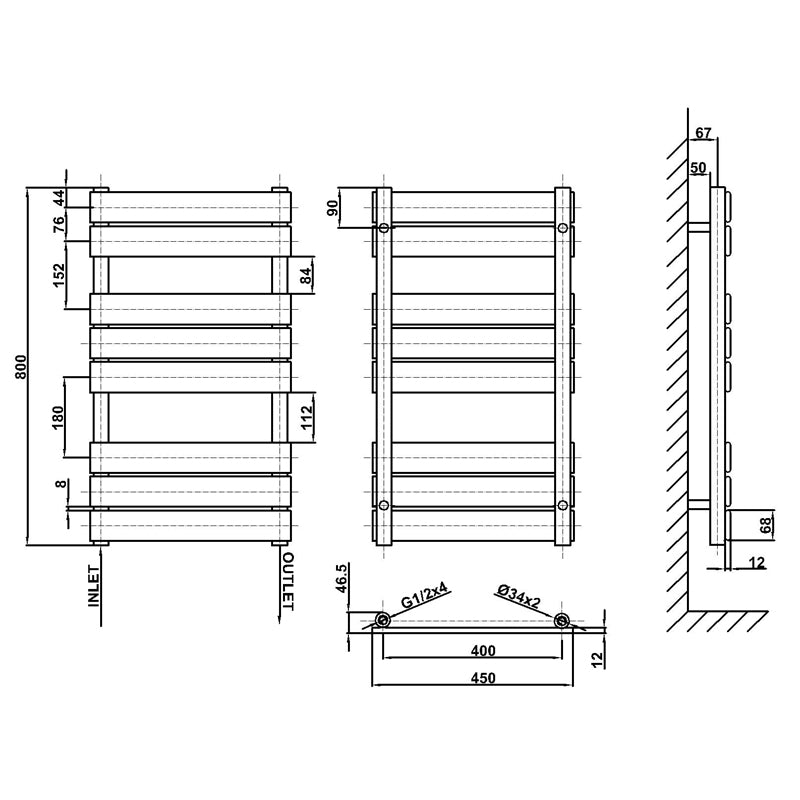

Technical drawing and dimensions for 800 x 450 black flat panel heated towel rail radiator with 8 bars.

Black Flat Panel Heated Towel Rail Radiator 800 x 450 / 1000 x 450 / 1200 x 450 / 1600 x 450

800mm
£70.95
Skip to product information
Technical drawing and dimensions for 800 x 450 black flat panel heated towel rail radiator with 8 bars.
1/8

Black Flat Panel Heated Towel Rail Radiator 800 x 450 / 1000 x 450 / 1200 x 450 / 1600 x 450

£70.95
Height Required

Bring modern style and practical heating into your bathroom with the BSD Black Flat Panel Heated Towel Rail Radiator range. Designed with a sleek flat panel profile and premium  black finish, these radiators are available in multiple heights while maintaining a slim 450mm width — perfect for both compact and larger bathroom spaces. Compatible with all UK central heating systems, they deliver reliable heat output alongside contemporary styling.

  • Premium Black Finish For A Modern Contemporary Look
  • Flat Panel Bar Design With Excellent Heat Output

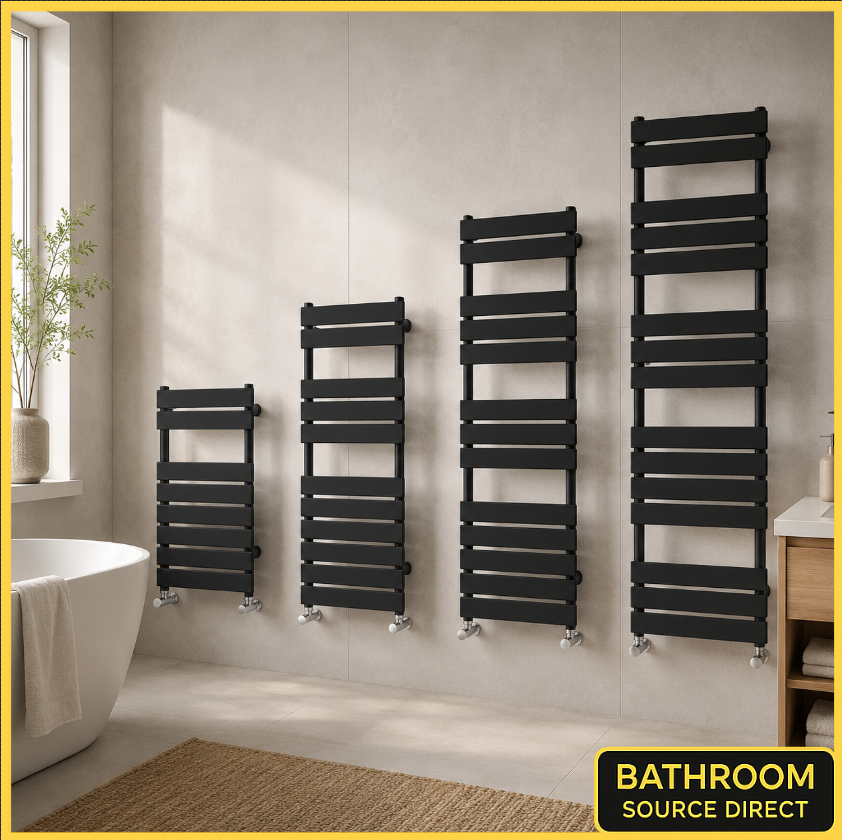

  • Available In 800mm, 1000mm, 1200mm & 1600mm Heights
  • Manufactured From Durable 1.6mm Mild Steel
  • Suitable For All UK Central Heating Systems
  • Supplied Complete With Wall Brackets, Fixings, Plug & Vent

Product Description

Upgrade your bathroom with the BSD Gloss Black Flat Panel Heated Towel Rail Radiator range — a stylish and practical heating solution designed for modern living. Featuring a sleek flat panel bar design and striking gloss black finish, these towel radiators bring a clean contemporary look to any bathroom, ensuite or cloakroom space.

Available in a range of heights while maintaining a slim 450mm width, this collection makes it easy to find the perfect size for your room layout and heating requirements. Whether you need a compact radiator for a smaller bathroom or a taller option with increased heat output, the BSD flat panel range combines modern styling with everyday practicality.

Manufactured from durable 1.6mm premium mild steel, these radiators are built for long-lasting performance and reliability. The high-quality triple layered finish helps provide excellent durability while giving the radiator its smooth gloss black appearance. Designed for compatibility with all standard UK central heating systems, installation is straightforward with standard 1/2" inlet and outlet connections.

The flat panel design not only creates a more premium appearance compared to traditional round tube towel rails, but also provides generous hanging space for towels while delivering effective heat circulation throughout the room.

Each radiator is supplied complete with wall brackets, fixing pack, plug and vent, providing everything required for installation. Manufactured in accordance with BS EN 442 standards for added peace of mind.

Product specification

Product Type: Flat Panel Heated Towel Rail Radiator
Finish: Gloss Black
Material: 1.6mm Premium Mild Steel
Width: 450mm
Height Options: 800mm / 1000mm / 1200mm / 1600mm
Bar Design: Flat Panel Horizontal Bars
Installation Type: Wall Mounted
Heating System Compatibility: Suitable For All UK Central Heating Systems
Inlet / Outlet Size: 1/2" BSP
Certification: Manufactured To BS EN 442 Standards
Finish Process: Triple Layered Finish For Enhanced Durability
Fixings Included: Yes
Wall Brackets Included: Yes
Plug & Vent Included: Yes
Heat Output & Wattage

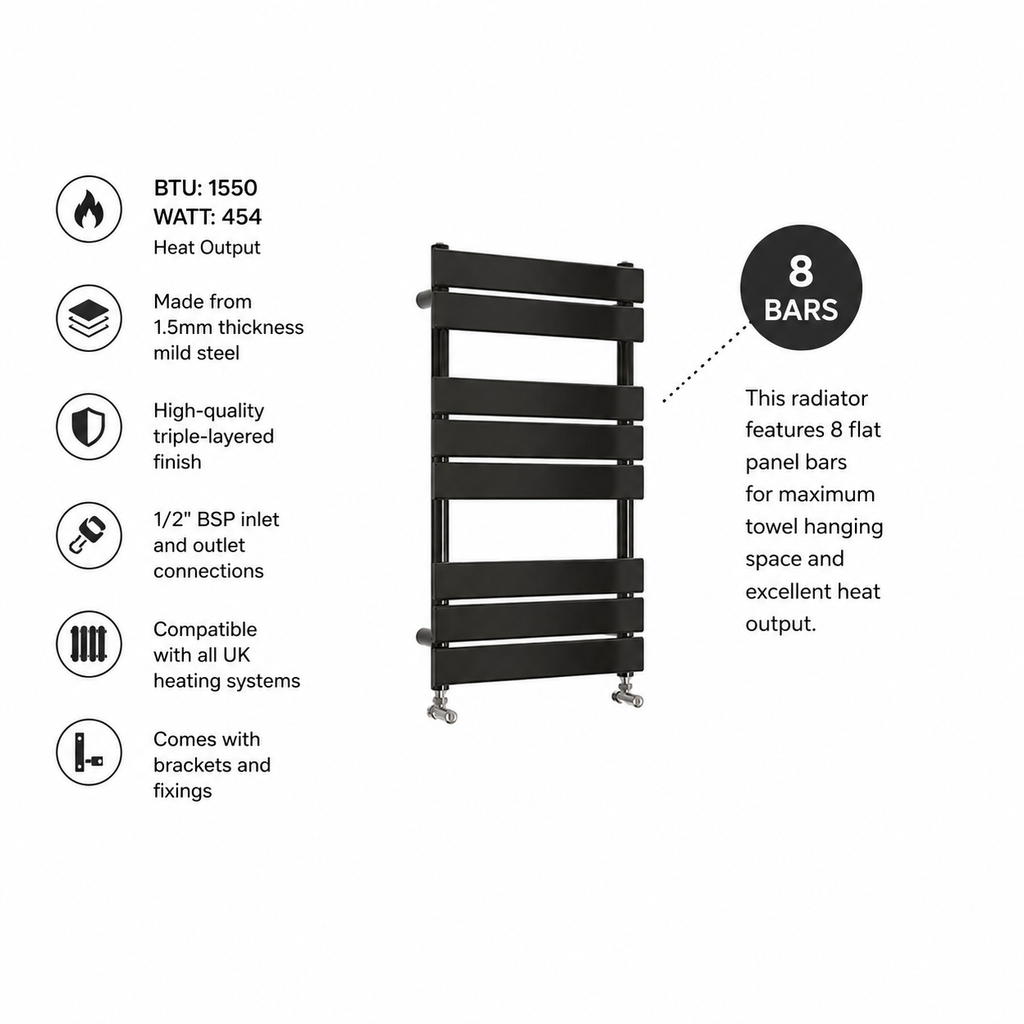

800 x 450mm — 1550 BTU / 454 Watts
1000 x 450mm — 1742 BTU / 510 Watts
1200 x 450mm — 2319 BTU / 679 Watts
1600 x 450mm — 2896 BTU / 849 Watts
